MX19002S51 - JAE Electronics

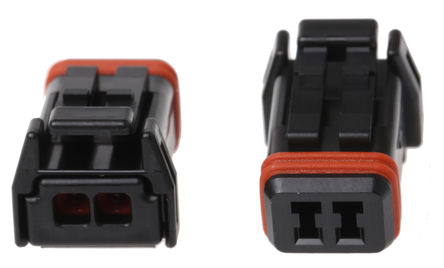

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MX19002S51
Manufacturer

JAE Electronics
ChipWorker Part#

CW8968386
Category

Automotive, Automotive Connector
Package

Housing
Description

Waterproof Cable To Cable, Mx19 Series 2Position Socket Housing, Black
Documentation

Datasheet

MX19002S51 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MX19002S51 Specifications

Attribute	Attribute Value

Part Number	MX19002S51
Manufacturer	JAE Electronics
ChipWorker Part#	CW8968386
Category	Automotive, Automotive Connector
Documentation	Datasheet
Case/Package	Housing
Number of Contacts	2 Contact
Gender	Female
Current Rating	5.00 A
Insulation Resistance	100 MΩ
Number of Rows	1 Row
Number of Positions	2 Position
Contact Resistance	10.0 mΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	9.8 mm
Size-Width	14.1 mm
Size-Height	9.25 mm
Color	Black
Contact Material	Copper Alloy
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
HK STC License	NLR

Product Description

2 Position Socket Connector — MX19 Series — 2.50 mm (0.98") Small Waterproof Relay Connectors
**Features:
**
* Cable-to-Cable
* Compact, Waterproof
* Mechanical Locking System
