MX19S10K451 - JAE Electronics

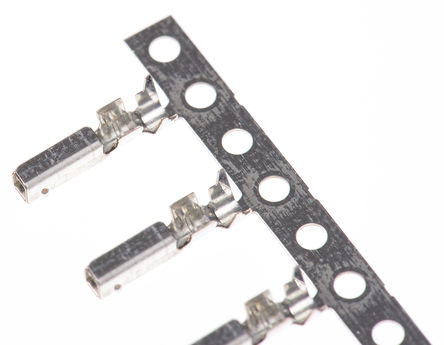

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MX19S10K451
Manufacturer

JAE Electronics
ChipWorker Part#

CW8361159
Category

PCB Connector
Package

-
Description

WATERPROOF CABLE TO CABLE, MX19 SERIES SOCKET CONTACTS
Documentation

Datasheet

MX19S10K451 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MX19S10K451 Specifications

Attribute	Attribute Value

Part Number	MX19S10K451
Manufacturer	JAE Electronics
ChipWorker Part#	CW8361159
Category	PCB Connector
Documentation	Datasheet
Case/Package	-
Gender	Female
Contact Plating	Tin
Current Rating	5.00 A
Number of Rows	01 Row
Contact Resistance	10 mΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Maximum Contact Resistance (Max)	10 mΩ
	expand all
Size-Length	9 mm
Size-Height	2.3 mm
Contact Material	Copper
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
HK STC License	NLR

Product Description

22-20 AWG Socket Contact — MX19 Series
Features:
* Material: Copper Alloy
* Termination: Crimp

expand all
