N25S830HAS22I - ON Semiconductor

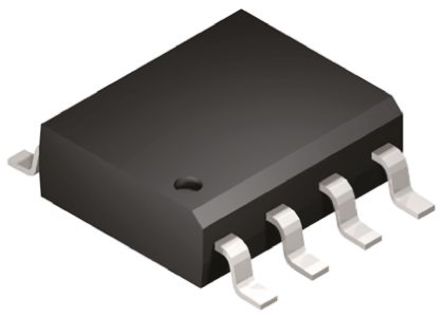

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

N25S830HAS22I
Manufacturer

ON Semiconductor
ChipWorker Part#

CW20724040
Category

RAM Memory, DRAM IC
Package

SOIC-8
Description

ON SEMICONDUCTOR N25S830HAS22I SRAM, 256Kbit, 32K x 8Bit, 2.7V to 3.6V, SOIC, 8Pins
Documentation

Datasheet

N25S830HAS22I Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

N25S830HAS22I Specifications

Attribute	Attribute Value

Part Number	N25S830HAS22I
Manufacturer	ON Semiconductor
ChipWorker Part#	CW20724040
Category	RAM Memory, DRAM IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	20 MHz
Supply Voltage (DC)	2.70V (min)
Halogen Free Status	Halogen Free
Number of Positions	8 Position
Clock Speed	20 MHz
Number of Bits	8 Bit
Access Time	25 ns
Memory Size	32000 B
Access Time(Max)	25 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The ON Semiconductor serial SRAM family includes several integrated memory devices including this 256 kb serially accessed Static Random Access Memory, internally organized as 32 k words by 8 bits. The devices are designed and fabricated using advanced CMOS technology to provide both high-speed performance and low power. The devices operate with a single chip select (CS) input and use a simple Serial Peripheral Interface (SPI) serial bus. A single data in and data out line is used along with a clock to access data within the devices. The N25S830HA devices include a HOLD pin that allows communication to the device to be paused. While paused, input transitions will be ignored. The devices can operate over a wide temperature range of -40°C to +85°C and can be available in several standard package offerings.
Features
---
|
2.7 to 3.6 V power supply range
Very low standby current - typical Isb as low as 1 uA
Very low operating current - as low as 3 mA
Simple memory control: single chip select (CS), serial input (SI) and serial output (SO)
Flexible operating modes: word read and write, page mode (32 word page), and burst mode (full array)
32 K x 8 bit organization
Self timed write cycles
Built-in write protection (CS high)
HOLD pin for pausing communication
