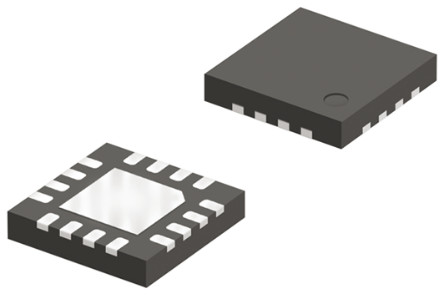

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NB6L239MNG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW20864807
Category

Clock Chip, Timing IC
Package

QFN-16
Description

Clock Divider Buffer 2Out 1IN 1:2 16Pin QFN EP Tube
Documentation

Datasheet

NB6L239MNG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NB6L239MNG Specifications

Attribute	Attribute Value

Part Number	NB6L239MNG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW20864807
Category	Clock Chip, Timing IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QFN-16
Supply Voltage (DC)	2.38V (min)
Halogen Free Status	Halogen Free
Number of Outputs	2 Output
Number of Circuits	1 Circuit
Number of Positions	16 Position
Clock Speed	3 GHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.375V ~ 3.465V
Supply Voltage (Max)	3.465 V
Supply Voltage (Min)	2.375 V
	expand all
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The NB6L239 is a high-speed, low skew clock divider with two divider circuits, each having selectable clock divide ratios; divide 1/2/4/8 and divide 2/4/8/16. Both divider circuits drive a pair of LVPECL outputs
Features
---
|
Maximum Clock Input Frequency; ≥ 3GHz
Input compatibility with LVDS/LVPECL/CML/HSTL
70 ps Typical Rise/Fall Times
5 ps Typcial Output-to-Output Skew
Ex. 622.08MHz Input Generates 38.88MHz to 622.08 MHz Outputs
Internal 50 Ω Termination Provided
Random Clock Jitter ≤ 1 ps RMS
Divide-by-1 Edge of QA Aligned to QB divided Output
Operating Range: VCC = 2.375 V to 3.465 V with VEE = 0 V
Master Reset for Synchronization of Multiple Chips
VBBAC Reference Output
Synchronous Output Disable/Enable
Telecom/Datacom Routers, Swithes
Pb-Free Packages are Available
