NC7ST32P5X - Fairchild

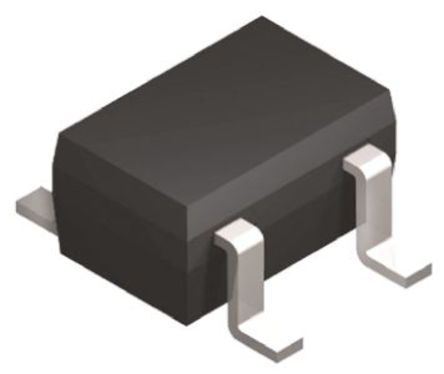

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NC7ST32P5X
Manufacturer

Fairchild
ChipWorker Part#

CW48320333
Category

Logic Control, Logic Gate IC
Package

SC-70-5
Description

OR Gate 1Element 2IN CMOS 5Pin SC-70 T/R
Documentation

Datasheet

NC7ST32P5X Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NC7ST32P5X Specifications

Attribute	Attribute Value

Part Number	NC7ST32P5X
Manufacturer	Fairchild
ChipWorker Part#	CW48320333
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Supply Voltage (DC)	5.00 V
Number of Outputs	1 Output
Number of Circuits	1 Circuit
Number of Gates	1 Gate
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
	expand all
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Thanks to Fairchild Semiconductor and their NC7ST32P5X logic gates, you can simplify your circuit down to a fundamental level. This gate has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
