NC7SV32L6X - Fairchild

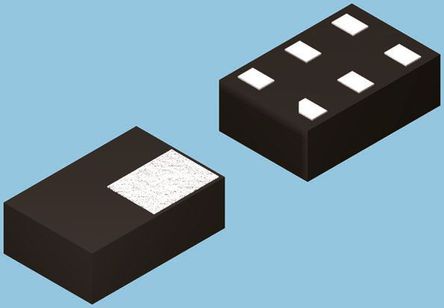

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NC7SV32L6X
Manufacturer

Fairchild
ChipWorker Part#

CW93766962
Category

Logic Control, Logic Gate IC
Package

UFDFN-6
Description

OR Gate 1Element 2IN CMOS 6Pin MicroPak W T/R
Documentation

Datasheet

NC7SV32L6X Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NC7SV32L6X Specifications

Attribute	Attribute Value

Part Number	NC7SV32L6X
Manufacturer	Fairchild
ChipWorker Part#	CW93766962
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	UFDFN-6
Supply Voltage (DC)	3.30 V
Number of Outputs	1 Output
Number of Circuits	1 Circuit
Number of Gates	1 Gate
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	0.9V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	0.9 V
	expand all
Size-Length	1.45 mm
Size-Width	1 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Now you can design fundamental logical circuits using some of Fairchild Semiconductor"s NC7SV32L6X logic gates! This gate has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.9 V, while its maximum is 3.6 V.
