NC7WZ16L6X - Fairchild

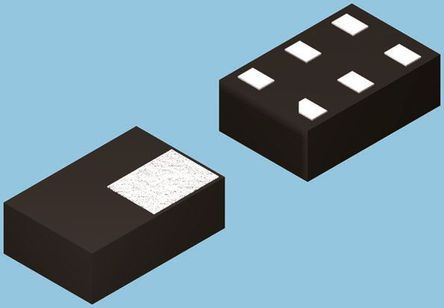

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NC7WZ16L6X
Manufacturer

Fairchild
ChipWorker Part#

CW57060207
Category

Logic Controller, Logic IC
Package

UFDFN-6
Description

Buffer 2CH Non-Inverting CMOS 6Pin MicroPak W T/R
Documentation

Datasheet

NC7WZ16L6X Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NC7WZ16L6X Specifications

Attribute	Attribute Value

Part Number	NC7WZ16L6X
Manufacturer	Fairchild
ChipWorker Part#	CW57060207
Category	Logic Controller, Logic IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	UFDFN-6
Supply Voltage (DC)	5.00 V
Number of Outputs	2 Output
Number of Channels	2 Channel
Number of Bits	2 Bit
Power Dissipation	180 mW
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	130 mW
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	expand all
Size-Length	1.45 mm
Size-Width	1 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Amplify analog and digital signals by driving the input to the transmission line with this NC7WZ16L6X buffer and line driver from Fairchild Semiconductor. This line driver has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has 2 channels per chip. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
