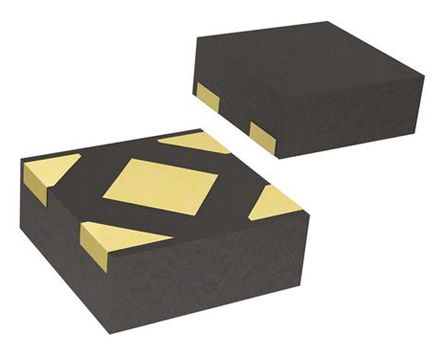

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NCP114AMX120TBG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW46564151
Category

Voltage Regulator
Package

UDFN-4
Description

ON SEMICONDUCTOR NCP114AMX120TBG LDO Voltage Regulator, Fixed, 1.7V to 5.5V input, 1.2V/0.3A out, µDFN-4 New
Documentation

Datasheet

NCP114AMX120TBG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NCP114AMX120TBG Specifications

Attribute	Attribute Value

Part Number	NCP114AMX120TBG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW46564151
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	UDFN-4
Number of Outputs	1 Output
Output Voltage	1.2 V
Output Current	300 mA
Supply Current	95 µA
Number of Positions	4 Position
Quiescent Current	0.05 mA
voltage rating	0.135V @300mA
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.7 V
Output Voltage (Min)	1.2 V
Output Current (Max)	0.3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	5.5 V
	expand all
Size-Length	1 mm
Size-Width	1 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The NCP114AMX120TBG is a 300mA CMOS low dropout regulator with active output discharge function in 4 pin uDFN package. It provides engineers with a very stable, accurate voltage with low noise suitable for space constrained and noise sensitive applications. In order to optimize performance for battery operated applications. The NCP114 employs the dynamic quiescent current adjustment for very low IQ consumption at no load.
Fixed output voltage of 1.2V
Operating input voltage range from 1.7V to 5.5V
Very low quiescent current of 50µA
Standby current consumption of 0.1µA and shutdown current of 0.01µA
Power supply rejection ratio of 75dB (f=1KHz) & output noise voltage of 70µVrms (f=10Hz to 100KHz)
±1% accuracy at room temperature
High power supply ripple rejection of 75dB at 1KHz
Thermal shutdown and current limit protections
Stable with 1µF ceramic output capacitor
Operating temperature range from -40°C to 85°C
