NCP18XW222J03RB - muRata

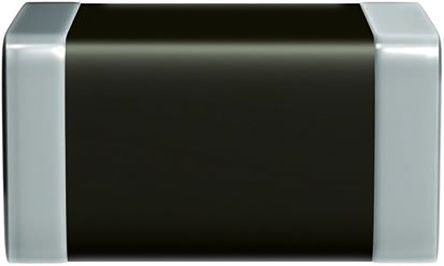

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NCP18XW222J03RB
Manufacturer

muRata
ChipWorker Part#

CW3712665
Category

Thermistor
Package

0603
Description

Thermistor, NTC, 2.2KΩ, NCP Series, 3950K, SMD, 0603 [1608 Metric]
Documentation

Datasheet

NCP18XW222J03RB Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NCP18XW222J03RB Specifications

Attribute	Attribute Value

Part Number	NCP18XW222J03RB
Manufacturer	muRata
ChipWorker Part#	CW3712665
Category	Thermistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1608
Case/Package	0603
Current Rating	670 µA
Capacitance Tolerance	±5 %
Power Rating	0.1 W
Resistance	2.2 kΩ
Resistance Tolerance	±5 %
Input Power (Max)	100 mW
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	1.6 mm
Size-Width	0.8 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99

Product Description

This NCP18XW222J03RB thermistor from Murata is a great way to measure temperature while taking up no space. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has 2 terminals. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 1.6 mm long, 0.8 mm tall and 0.8 mm deep.
