NCP3064MNTXG - ON Semiconductor

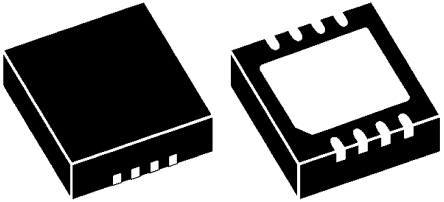

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NCP3064MNTXG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW61873441
Category

DC to DC Converter
Package

DFN-8
Description

Conv DC-DC 3V to 40V Non-Inv/Inv/Step Up/Step Down Single-Out 1.5A 8Pin DFN EP T/R
Documentation

Datasheet

NCP3064MNTXG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NCP3064MNTXG Specifications

Attribute	Attribute Value

Part Number	NCP3064MNTXG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW61873441
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DFN-8
Supply Voltage (DC)	40.0V (max)
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Current	1.5 A
Switching Frequency	150 kHz
Topology	Step-Up, Step-Down
Input Voltage (Max)	40 V
Input Voltage (Min)	3 V
Output Voltage (Max)	40 V
Output Voltage (Min)	1.25 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	3V ~ 40V
	expand all
Size-Length	4 mm
Size-Width	4 mm
Size-Height	0.95 mm
Operating Temperature	0℃ ~ 70℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Buck, Boost Switching Regulator IC Positive or Negative Adjustable 1.25V 1 Output 1.5A (Switch) 8-VDFN Exposed Pad
