NCP57302DSADJR4G - ON Semiconductor

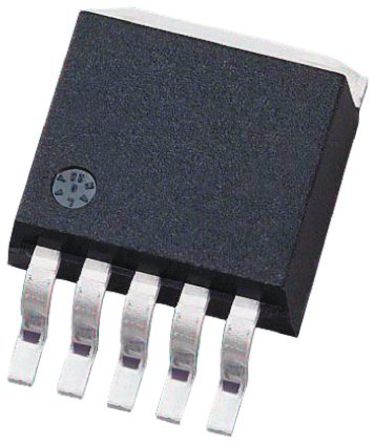

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NCP57302DSADJR4G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW82005532
Category

Voltage Regulator
Package

TO-263-6
Description

LDO Regulator Pos 1.24V to 13V 3A 6Pin(5+Tab) D2PAK T/R
Documentation

Datasheet

NCP57302DSADJR4G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NCP57302DSADJR4G Specifications

Attribute	Attribute Value

Part Number	NCP57302DSADJR4G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW82005532
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-6
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	1.24V ~ 13V
Output Current	3 A
Number of Positions	5 Position
Polarity	P-Channel
voltage rating	0.182V @1A,0.22V @1.5A,0.315V @3A,0.25V @2A
Input Voltage (Max)	13.5 V
Input Voltage (Min)	1.8 V
Output Voltage (Max)	13 V
Output Voltage (Min)	1.24 V
Output Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1.5 %
Input Voltage	≤13.5 V
	expand all
Size-Length	10.24 mm
Size-Width	9.347 mm
Size-Height	4.572 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

Linear Voltage Regulator IC 1 Output 3A D2PAK-5
