NCP6324BMTAATBG - ON Semiconductor

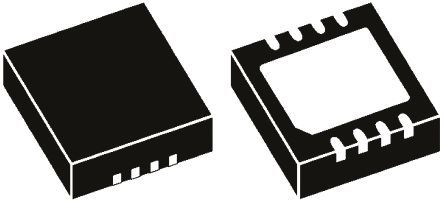

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NCP6324BMTAATBG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW27386529
Category

DC to DC Converter
Package

WDFN-8
Description

Conv DC-DC 2.5V to 5.5V Step Down Single-Out 0.6V to 5.5V 2A 8Pin WDFN EP T/R
Documentation

Datasheet

NCP6324BMTAATBG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NCP6324BMTAATBG Specifications

Attribute	Attribute Value

Part Number	NCP6324BMTAATBG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW27386529
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WDFN-8
Number of Outputs	1 Output
Output Voltage	0.6V ~ 5.5V
Output Current	2 A
Number of Positions	8 Position
Switching Frequency	3.3 MHz
Switching Current	2.8 A
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	600 mV
Output Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.5V ~ 5.5V
	expand all
Size-Length	2 mm
Size-Width	2 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

Adjust the voltage level of your devices with this NCP6324BMTAATBG DC to DC converter from ON Semiconductor.
