NCS199A2SQT2G - ON Semiconductor

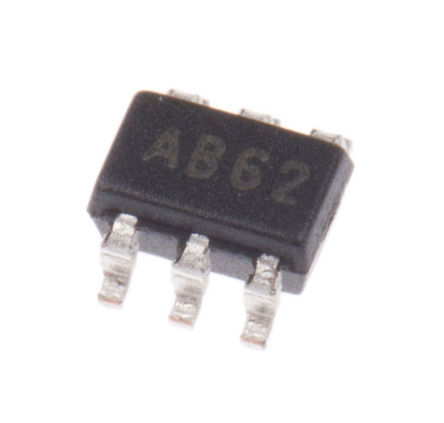

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NCS199A2SQT2G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW11127666
Category

Power Monitor
Package

SC-70-6
Description

ON SEMICONDUCTOR NCS199A2SQT2G Current Sense Amplifier, Voltage Output, 1 Amplifier, 60μA, SC-70, 6Pins, -40℃, 125℃
Documentation

Datasheet

NCS199A2SQT2G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NCS199A2SQT2G Specifications

Attribute	Attribute Value

Part Number	NCS199A2SQT2G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW11127666
Category	Power Monitor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Supply Current	65 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Common Mode Rejection Ratio	120 dB
Bandwidth	60 kHz
Input Offset Voltage	5 µV
Input Bias Current	60 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	60 kHz
Minimum CMRR Range	100 dB
Supply Voltage (Max)	26 V
Supply Voltage (Min)	2.7 V
	expand all
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The NCS199A1, NCS199A2 and NCS199A3 are voltage output current shunt monitors that can measure voltage across shunts at common−mode voltages from −0.3 V to 26 V, independent of supply voltage. Three fixed gains are available: 50 V/V, 100 V/V or 200 V/V. The low offset of the zero−drift architecture enables current sensing with maximum drops across the shunt as low as 10 mV full−scale. The devices can operate from a single +2.7 V to +26 V power supply, drawing a maximum of 100µA of supply current. All versions are specified over the extended operating temperature range (–40°C to +125°C).
Features | | Benefits
---|---|---
| | | | |
Wide common mode input range -0.3 V to 26 V
| |
High-Side Current Sensing for High Voltage Systems
Supply voltage range from 2.7 V to 26 V
| |
Flexible System Supply Voltage
Low offset voltage ±150µV Max
| |
Low Value Current Sense Resistors for Better Power Efficiency
Low offset drift
| |
Temperature Sensitive Applications

expand all
