NCV2903DMR2G - ON Semiconductor

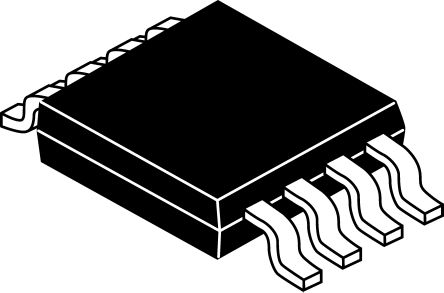

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NCV2903DMR2G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW9490535
Category

Comparator, Analog Comparator IC
Package

MSOP-8
Description

ON SEMICONDUCTOR NCV2903DMR2G Analogue Comparator, Precision, 2, 1.5µs, 2V to 36V, ± 1V to ± 18V, Micro, 8Pins New
Documentation

Datasheet

NCV2903DMR2G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NCV2903DMR2G Specifications

Attribute	Attribute Value

Part Number	NCV2903DMR2G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW9490535
Category	Comparator, Analog Comparator IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Voltage (DC)	2.00V (min)
Halogen Free Status	Halogen Free
Output Current	16mA @5V
Supply Current	1 mA
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	570 mW
Input Offset Voltage	7 mV
Input Bias Current	250 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	570 mW
Supply Voltage	2V ~ 36V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	3.1 mm
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	ECL99

Product Description

The LM393 series are dual independent precision voltage comparators capable of single or split supply operation. These devices are designed to permit a common mode range-to-ground level with single supply operation. Input offset voltage specifications as low as 2.0 mV make this device an excellent selection for many applications in consumer automotive and industrial electronics.
Features
---
|
Wide Single-Supply Range: 2.0 Vdc to 36 Vdc
Split-Supply Range: +/-1.0 Vdc to +/-18 Vdc
Very Low Current Drain Independent of Supply Voltage: 0.4 mA
Low Input Bias Current: 25 nA
Low Input Offset Current: 5.0 nA
Low Input Offset Voltage: 2.0 mV (max) LM393A 5.0 mV (max) LM293/393
Input Common Mode Range to Ground Level
Differential Input Voltage Range Equal to Power Supply Voltage
Output Voltage Compatible with DTL, ECL, TTL, MOS, and CMOS Logic Levels
ESD Clamps on the Inputs Increase the Ruggedness of the Device without Affecting Performance
