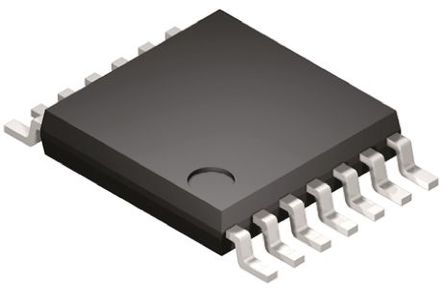

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NCV33204DTBR2G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW39245000
Category

Operational Amplifier, OP Amp IC
Package

TSSOP-14
Description

ON SEMICONDUCTOR NCV33204DTBR2G Operational Amplifier, Rail-to-Rail, 4 Amplifier, 2.2MHz, 1V/µs, 1.8V to 12V, TSSOP, 14Pins New
Documentation

Datasheet

NCV33204DTBR2G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NCV33204DTBR2G Specifications

Attribute	Attribute Value

Part Number	NCV33204DTBR2G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW39245000
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Halogen Free Status	Halogen Free
Output Current	80 mA
Supply Current	1.125 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	90 dB
Bandwidth	2.2 MHz
Slew Rate	1.00 V/μs
Gain Bandwidth Product	2.2 MHz
Input Offset Voltage	17 mV
Input Bias Current	200 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Minimum CMRR Range	60 dB
Supply Voltage	1.8V ~ 12V
	expand all
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

**MC33201/2/4, NCV33202/4, 12V Low Noise, Rail-to-Rail I/O, High Output Drive, Operational Amplifiers, ON Semiconductor**
The ON Semiconductor MC33201/2/4, NCV33202/4 Op Amps provide rail-to-rail operation on both the input and output. Drive inputs as high as 200 mV beyond the supply rails without phase reversal on the outputs, and the output can swing within 50 mV of each rail. This rail-to-rail operation enables you to make full use of the supply voltage range available. Output current boosting techniques provide a high output current capability while keeping the drain current of the amplifier to a minimum. Low noise and distortion with a high slew rate and drive capability make them ideal for audio applications.
