NDF05N50ZG - ON Semiconductor

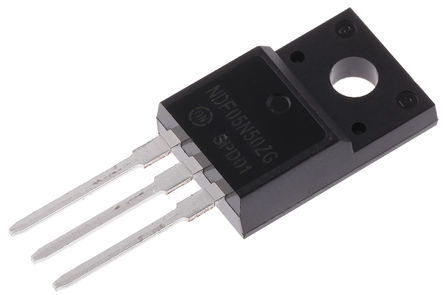

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NDF05N50ZG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW50192196
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220FP N-CH 500V 5.5A
Documentation

Datasheet

NDF05N50ZG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NDF05N50ZG Specifications

Attribute	Attribute Value

Part Number	NDF05N50ZG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW50192196
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	1.25 Ω
Polarity	N-Channel
Power Dissipation	28 W
Threshold Voltage	4.5 V
Drain to Source Voltage (Vds)	500 V
Continuous Drain Current (Ids)	5.00 A
Rise Time	15 ns
Input Capacitance (Ciss)	632pF @25V(Vds)
Input Power (Max)	30 W
Fall Time	14 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	30W (Tc)
	expand all
Size-Length	10.63 mm
Size-Width	4.9 mm
Size-Height	16.12 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

N-Channel 500V 5.5A (Tc) 30W (Tc) Through Hole TO-220FP
