NE555DR ,Clock Chip, Timing IC - TI

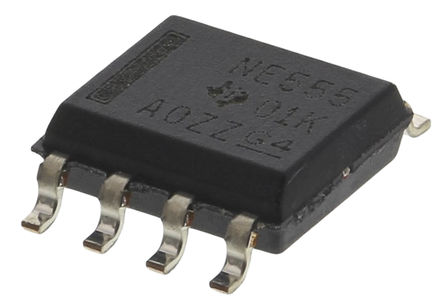

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

353 points

Part No

NE555DR
Manufacturer

TI
ChipWorker Part#

CW28729
Category

Clock Chip, Timing IC
Package

SOIC-8
Description

Timer IC, Timing Microseconds to Hours, Astable, Monostable, 4.5V to 16V, 200mA out, SOIC-8
Documentation

Datasheet
Ships from

Moscow
Наличие

9792 pcs In Stock
Estimated Price

$ 0.05

Buy NE555DR

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

NE555DR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

NE555DR Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	NE555DR
Manufacturer	TI
ChipWorker Part#	CW28729
Category	Clock Chip, Timing IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	100 kHz
Supply Voltage (DC)	4.50V (min)
Supply Current	10 mA
Number of Positions	8 Position
Quiescent Current	2.00 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.5V ~ 16V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

National Semiconductor

Product Description

The NE555D is a precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the a stable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor. The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels can be altered by use of the control-voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low.
Timing from microseconds to hours
A stable or monostable operation
Adjustable duty cycle
TTL compatible output can sink or source up to 200mA

expand all
