NFE61PT101Z1H9L - muRata

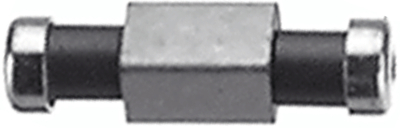

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoNFE61PT101Z1H9L
-
ManufacturermuRata
-
ChipWorker Part#CW5324470
-
CategoryRFI Shielding
-
Package2606
-
DescriptionMURATA NFE61PT101Z1H9L Power Line Filter, 100pF, 50V, 2A, EMI, RFI, SMD
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
NFE61PT101Z1H9L Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
NFE61PT101Z1H9L Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | NFE61PT101Z1H9L |
| Manufacturer | muRata |
| ChipWorker Part# | CW5324470 |
| Category | RFI Shielding |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Case/Package | 2606 |
| Voltage Rating (DC) | 50.0 V |
| Current Rating | 2 A |
| Insulation Resistance | 1.00 GΩ |
| Capacitance | 100 pF |
| Capacitance Tolerance | ±30 % |
| Number of Channels | 1 Channel |
| Shielding | No |
| Current Rating (Max) | 2 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 50 VDC |
| Voltage Rating | 50 V |
| expand all | |
| Size-Length | 6.8 mm |
| Size-Width | 1.6 mm |
| Size-Height | 1.6 mm |
| Dielectric Material | Ceramic |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
Product Description
- The NFE61PT101Z1H9L is a Power Line Filter offers large rated current of 2A and low voltage drop due to small DC resistance are suitable for DC power line use. The T-type circuit EMI suppression filter has feed-through capacitor realizes excellent high frequency characteristics and suitable for use in general applications. The structure incorporates built-in ferrite beads which minimize resonance with surrounding circuits.
- REACH compliant
- 1000MR Minimum insulation resistance
- Feed through chip EMI filters
- -40 to 85°C Operating temperature range
