NFM3DCC471R1H3L - muRata

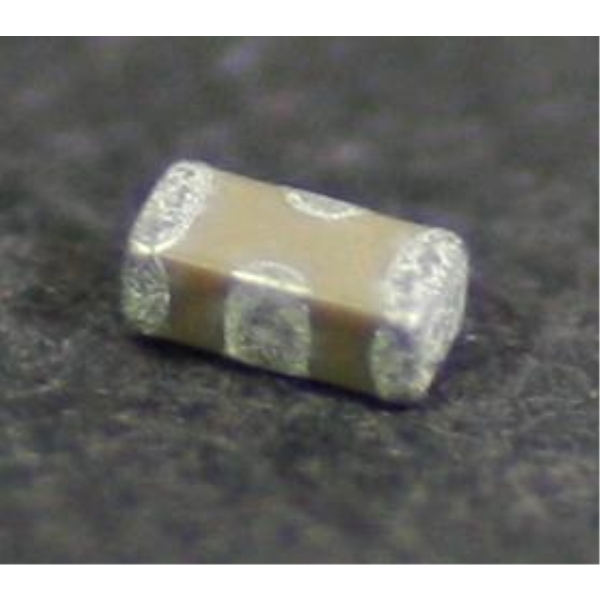

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NFM3DCC471R1H3L
Manufacturer

muRata
ChipWorker Part#

CW17607235
Category

RFI Shielding
Package

3212
Description

Cap Feed Through 470pF 50VDC -20% to 50% Flat 1205 125℃
Documentation

Datasheet

NFM3DCC471R1H3L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NFM3DCC471R1H3L Specifications

Attribute	Attribute Value

Part Number	NFM3DCC471R1H3L
Manufacturer	muRata
ChipWorker Part#	CW17607235
Category	RFI Shielding
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	3212
Voltage Rating (DC)	50 V
Current Rating	300 mA
Insulation Resistance	1 GΩ
Capacitance	470 pF
Resistance	300 mΩ
Shielding	No
Ripple Current	300 mA
Current Rating (Max)	0.3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating (Max)	50 VDC
Voltage Rating	50 V
Resistance (DC Max)	0.3 Ω
	expand all
Size-Length	3.2 mm
Size-Width	1.25 mm
Size-Height	0.7 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The NFM3DCC471R1H3L is a CHIP EMIFIL® Power Line Filter designed for noise suppression. Its inner structure is like a feed-through capacitor, makes its ground impedance quite low. The 3-terminal capacitor has a good noise suppression effect at a high frequency range up to several hundred MHz.
REACH compliant
Low ESL
Standard of 3-terminal capacitor
300mR Maximum DC resistance
1000MR Minimum insulation resistance
-55 to 125°C Operating temperature range
Do not use products beyond the rated current and rated voltage as this may create excessive heat and deteriorate the insulation resistance.
