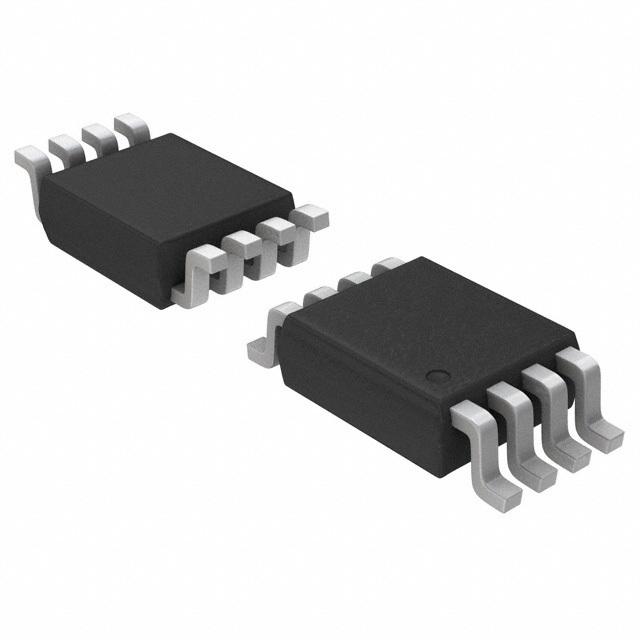

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NL27WZ86USG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW15119550
Category

Logic Control, Logic Gate IC
Package

US-8
Description

XOR Gate 2Element 2IN CMOS 8Pin US T/R
Documentation

Datasheet

NL27WZ86USG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NL27WZ86USG Specifications

Attribute	Attribute Value

Part Number	NL27WZ86USG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW15119550
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	US-8
Supply Voltage (DC)	5.00 V
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Current	32.0 mA
Number of Circuits	2 Circuit
Number of Positions	8 Position
Number of Gates	2 Gate
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

ON Semiconductor brings you their latest NL27WZ86USG logic gates, from which you can build and implement logical functions. This gate has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
