NMJ0512SAC - muRata

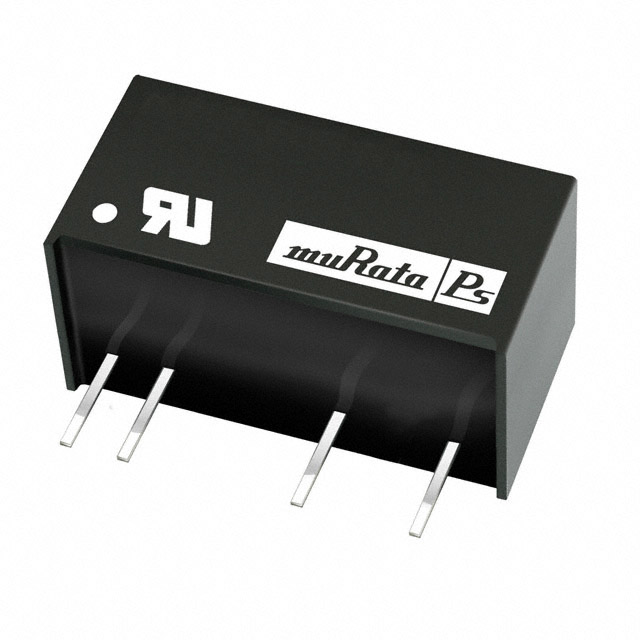

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NMJ0512SAC
Manufacturer

muRata
ChipWorker Part#

CW49038334
Category

DC to DC Converter, DC/DC Converter
Package

SIP-7
Description

Module DC-DC 5Vin 1Out 12V 0.083A 1W 4Pin SIP Tube
Documentation

Datasheet

NMJ0512SAC Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NMJ0512SAC Specifications

Attribute	Attribute Value

Part Number	NMJ0512SAC
Manufacturer	muRata
ChipWorker Part#	CW49038334
Category	DC to DC Converter, DC/DC Converter
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	SIP-7
Supply Voltage (DC)	5.00 V
Power Rating	1 W
Number of Outputs	1 Output
Input Voltage (DC)	4.50V ~ 5.50V
Output Voltage	12 V
Output Current	0.083 A
Flammability Rating	UL 94 V-0
Output Power	1 W
Isolation Voltage	5.2 kV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	5.5 V
Input Voltage (DC Min)	4.5 v
Output Current (Max)	83 mA
Input Power (Max)	1 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	5 V
	expand all
Size-Length	19.5 mm
Size-Width	9.8 mm
Size-Height	12.5 mm
Weight	4.3 g
Operating Temperature	-40℃ ~ 60℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

Isolated Module DC DC Converter 1 Output 12V 83mA 4.5V - 5.5V Input
