NSR0130P2T5G - ON Semiconductor

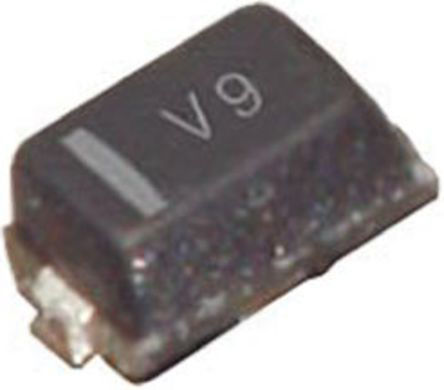

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NSR0130P2T5G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW938608
Category

Schottky Diode
Package

SOD-923
Description

Small Signal Schottky Diode, Single, 30V, 100mA, 525mV, 1A, 125℃
Documentation

Datasheet

NSR0130P2T5G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NSR0130P2T5G Specifications

Attribute	Attribute Value

Part Number	NSR0130P2T5G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW938608
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-923
Number of Positions	2 Position
Forward Voltage	0.525 V
Power Dissipation	200 mW
Thermal Resistance	600℃/W (RθJA)
Forward Current	100 mA
Max Forward Surge Current (Ifsm)	1 A
Maximum Forward Voltage (Max)	525 mV
Forward Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	expand all
Size-Length	0.85 mm
Size-Width	0.65 mm
Size-Height	0.43 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR

Product Description

Diode Schottky 30V 100mA (DC) Surface Mount SOD-923
