NTD5862NT4G - ON Semiconductor

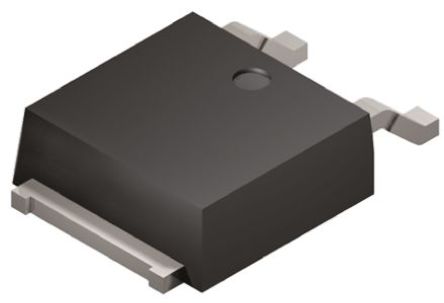

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NTD5862NT4G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW38573921
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

Trans MOSFET N-CH 60V 98A 3Pin(2+Tab) DPAK T/R
Documentation

Datasheet

NTD5862NT4G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NTD5862NT4G Specifications

Attribute	Attribute Value

Part Number	NTD5862NT4G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW38573921
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0044 Ω
Power Dissipation	115 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	60 V
Rise Time	70 ns
Input Capacitance (Ciss)	6000pF @25V(Vds)
Input Power (Max)	115 W
Fall Time	60 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	115W (Tc)
	expand all
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

N-Channel 60V 98A (Tc) 115W (Tc) Surface Mount DPAK
