NTLUD3A50PZTAG - ON Semiconductor

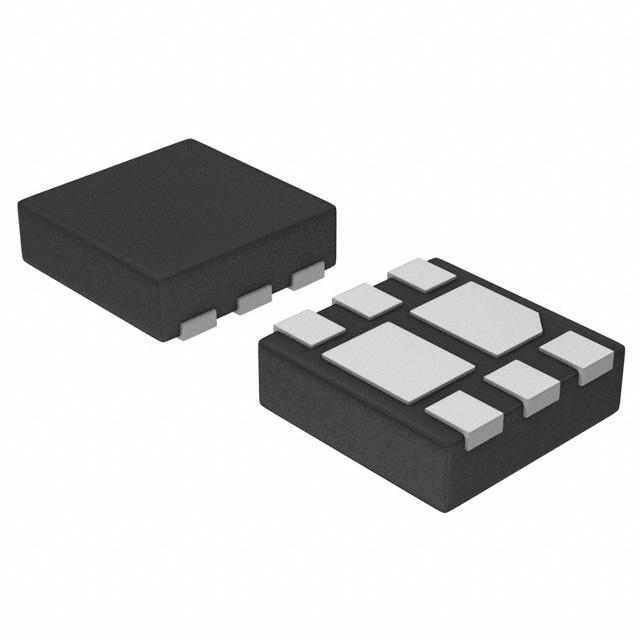

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NTLUD3A50PZTAG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW36646070
Category

MOSFET, MOSFET Transistor
Package

uDFN-6
Description

Power MOSFET -20V -5.6A 50mOhm Dual P-Channel uDFN6 with ESD Protection, UDFN6 2X2, 0.65P, 3000-REEL
Documentation

Datasheet

NTLUD3A50PZTAG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NTLUD3A50PZTAG Specifications

Attribute	Attribute Value

Part Number	NTLUD3A50PZTAG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW36646070
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	uDFN-6
Polarity	Dual P-Channel
Power Dissipation	1.4 W
Drain to Source Voltage (Vds)	20 V
Rise Time	12 ns
Input Capacitance (Ciss)	920pF @15V(Vds)
Input Power (Max)	500 mW
Fall Time	30 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1400 mW
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Mosfet Array 2 P-Channel (Dual) 20V 2.8A 500mW Surface Mount 6-UDFN (2x2)
