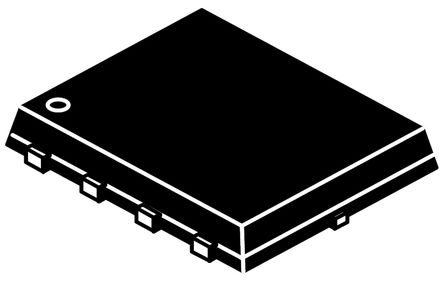

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NTMFS4C05NT1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW4196007
Category

MOSFET, MOSFET Transistor
Package

SO-FL-8
Description

Power MOSFET 30V 78A 3.4mOhm Single N-Channel SO-8FL, DFN5 5X6, 1.27P (SO 8FL), 1500-REEL
Documentation

Datasheet

NTMFS4C05NT1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NTMFS4C05NT1G Specifications

Attribute	Attribute Value

Part Number	NTMFS4C05NT1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW4196007
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SO-FL-8
Number of Channels	1 Channel
Number of Positions	5 Position
Drain to Source Resistance (on) (Rds)	0.0027 Ω
Polarity	N-Channel
Power Dissipation	33 W
Threshold Voltage	2.2 V
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30 V
Rise Time	32 ns
Output Power	38.5 W
Input Capacitance (Ciss)	1972pF @15V(Vds)
Input Power (Max)	770 mW
Fall Time	7 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	770mW (Ta), 33W (Tc)
Supply Voltage	30 V
	expand all
Size-Length	6.1 mm
Size-Width	5.1 mm
Size-Height	1.05 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20

Product Description

N-Channel 30V 11.9A (Ta) 770mW (Ta), 33W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
