NTP18N06L - ON Semiconductor

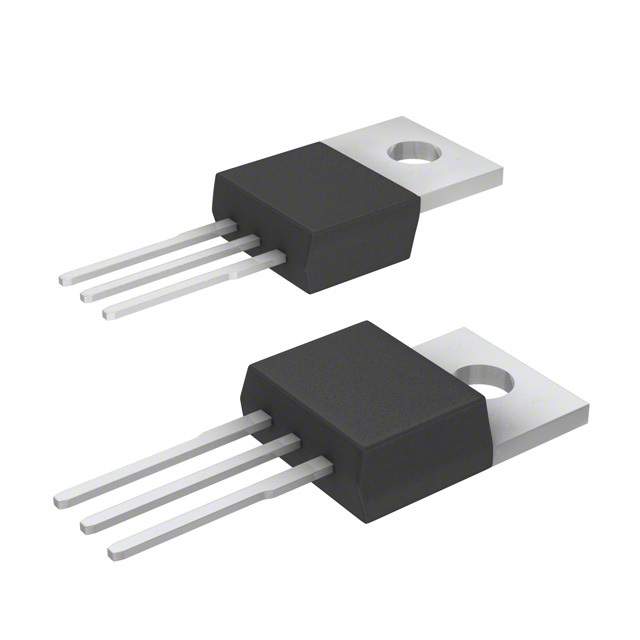

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NTP18N06L
Manufacturer

ON Semiconductor
ChipWorker Part#

CW135422510
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220AB N-CH 60V 15A
Documentation

Datasheet

NTP18N06L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NTP18N06L Specifications

Attribute	Attribute Value

Part Number	NTP18N06L
Manufacturer	ON Semiconductor
ChipWorker Part#	CW135422510
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	TO-220-3
Voltage Rating (DC)	60.0 V
Current Rating	15.0 A
Drain to Source Resistance (on) (Rds)	100 mΩ
Polarity	N-Channel
Power Dissipation	48.4W (Tc)
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60.0 V
Breakdown Voltage (Gate to Source)	±10.0 V
Continuous Drain Current (Ids)	15.0 A
Rise Time	121 ns
Input Capacitance (Ciss)	440pF @25V(Vds)
Input Power (Max)	48.4 W
Power Dissipation (Max)	48.4W (Tc)
	expand all
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99

Product Description

N-Channel 60V 15A (Tc) 48.4W (Tc) Through Hole TO-220AB
