NTTFS4821NTAG - ON Semiconductor

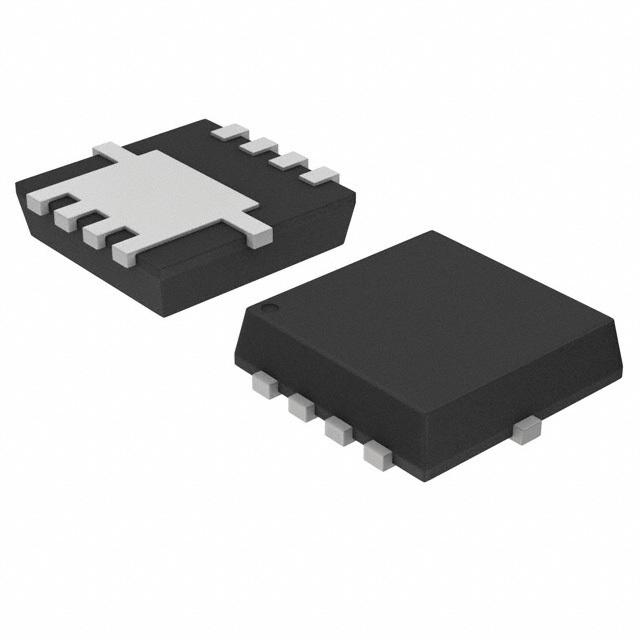

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NTTFS4821NTAG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW48773503
Category

MOSFET, MOSFET Transistor
Package

WDFN-8
Description

Trans MOSFET N-CH 30V 18.6A 8Pin WDFN EP T/R
Documentation

Datasheet

NTTFS4821NTAG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NTTFS4821NTAG Specifications

Attribute	Attribute Value

Part Number	NTTFS4821NTAG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW48773503
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WDFN-8
Polarity	N-Channel
Power Dissipation	4.1 W
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	13.5 A, 18.6 A
Rise Time	22 ns
Input Capacitance (Ciss)	1755pF @12V(Vds)
Input Power (Max)	660 mW
Fall Time	4.5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	660mW (Ta), 38.5W (Tc)
	expand all
Size-Length	3.05 mm
Size-Width	3.05 mm
Size-Height	0.75 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

N-Channel 30V 7.5A (Ta), 57A (Tc) 660mW (Ta), 38.5W (Tc) Surface Mount 8-WDFN (3.3x3.3)
