OP177GS - ADI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

OP177GS
Manufacturer

ADI
ChipWorker Part#

CW6039103
Category

Operational Amplifier, OP Amp IC
Package

SOIC-8
Description

ANALOG DEVICES OP177GS Operational Amplifier, Single, 1 Amplifier, 0.3V/µs, SOIC, 8Pins
Documentation

Datasheet

OP177GS Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

OP177GS Specifications

Attribute	Attribute Value

Part Number	OP177GS
Manufacturer	ADI
ChipWorker Part#	CW6039103
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Current	1.6 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Power Dissipation	500 mW
Common Mode Rejection Ratio	140 dB
Slew Rate	300 nV/μs
Gain Bandwidth Product	600 kHz
Input Impedance	200 GΩ
Input Offset Voltage	20 µV
Input Bias Current	1.2 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	600 kHz
Power Dissipation (Max)	500 mW
Minimum CMRR Range	115 dB
Supply Voltage (Max)	22 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17

Product Description

Product Details
The OP177 features one of the highest precision performance of any operational amplifier currently available. Offset voltage of the OP177 is only 25 μV maximum at room temperature. The ultralow VOS of the OP177 combines with the exceptional offset voltage drift (TCVOS) of 0.3 μV/°C maximum to eliminate the need for external VOS adjustment and increases system accuracy over temperature.
The OP177 open-loop gain of 12 V/μV is maintained over the full ±10 V output range. CMRR of 130 dB minimum, PSRR of 120 dB minimum, and maximum supply current of 2 mA are just a few examples of the excellent performance of this operational amplifier. The combination of outstanding specifications of the OP177 ensures accurate performance in high closed-loop gain applications.
This low noise, bipolar input operational amplifier is also a cost effective alternative to chopper-stabilized amplifiers. The OP177 provides chopper-type performance without the usual problems of high noise, low frequency chopper spikes, large physical size, limited common-mode input voltage range, and bulky external storage capacitors.

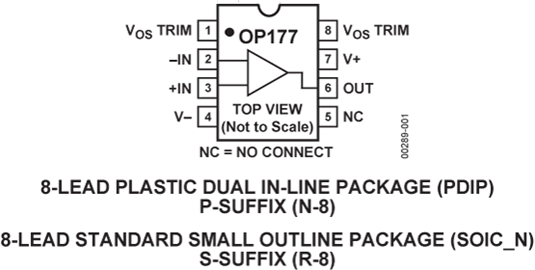

The OP177 is offered in the −40°C to +85°C extended industrial temperature ranges. This product is available in 8-lead PDIP, as well as the space saving 8-lead SOIC.
### Features and Benefits
Ultralow offset voltage
TA = 25°C, 25 μV maximum
Outstanding offset voltage drift 0.3 μV/°C maximum
Excellent open-loop gain and gain linearity
12 V/μV typical
CMRR: 130 dB minimum
PSRR: 115 dB minimum
Low supply current 2.0 mA maximum
Fits industry-standard precision operational amplifier sockets
