OPA2171AIDGKR - TI

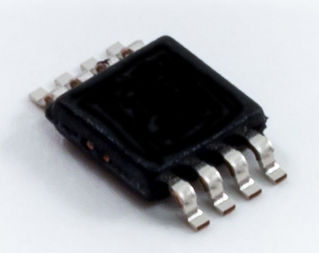

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

OPA2171AIDGKR
Manufacturer

TI
ChipWorker Part#

CW1603896
Category

Operational Amplifier, OP Amp IC
Package

VSSOP-8
Description

36V, Low Power, RRO, General Purpose Operational Amplifier in MicroPackages 8-VSSOP -40℃ to 125℃
Documentation

Datasheet

OPA2171AIDGKR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

OPA2171AIDGKR Specifications

Attribute	Attribute Value

Part Number	OPA2171AIDGKR
Manufacturer	TI
ChipWorker Part#	CW1603896
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Output Current	35 mA
Supply Current	475 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Common Mode Rejection Ratio	90 dB
Input Offset Drift	300 nV/K
Slew Rate	1.50 V/μs
Gain Bandwidth Product	3 MHz
Thermal Shutdown	Yes
Input Offset Voltage	250 µV
Input Bias Current	8 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	3 MHz
Minimum CMRR Range	90 dB
Supply Voltage (Max)	36 V
Supply Voltage (Min)	2.7 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The OPA171, OPA2171, and OPA4171 (OPAx171) are a family of 36-V, single-supply, low-noise operational amplifiers with the ability to operate on supplies ranging from 2.7 V (±1.35 V) to 36 V (±18 V). These devices are available in micro-packages and offer low offset, drift, and bandwidth with low quiescent current. The single, dual, and quad versions all have identical specifications for maximum design flexibility.
Unlike most operational amplifiers, which are specified at only one supply voltage, the OPAx171 family is specified from 2.7 to 36 V. Input signals beyond the supply rails do not cause phase reversal. The OPAx171 family is stable with capacitive loads up to 300 pF. The input can operate 100 mV below the negative rail and within 2 V of the top rail during normal operation. These devices can operate with full rail-to-rail input 100 mV beyond the top rail, but with reduced performance within 2 V of the top rail.
The OPAx171 series of operational amplifiers are specified from –40°C to 125°C.
