P4SMA39CA - Littelfuse

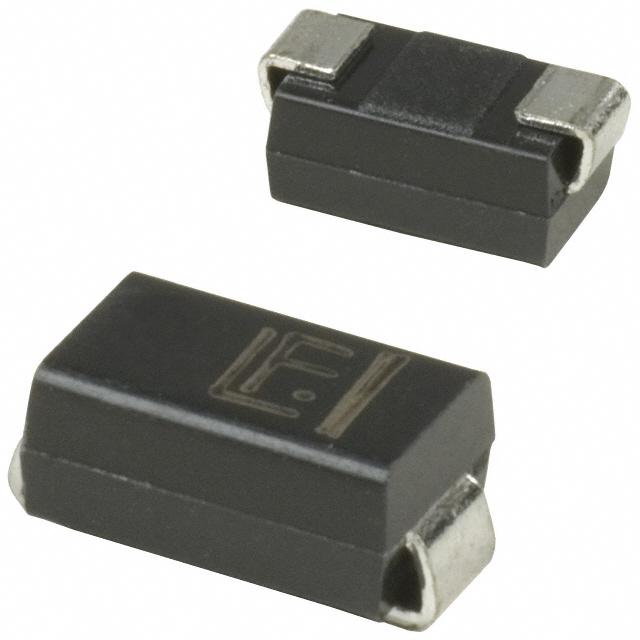

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

P4SMA39CA
Manufacturer

Littelfuse
ChipWorker Part#

CW7761971
Category

TVS Diode
Package

DO-214AC
Description

Diode TVS Single Bi-Dir 33.3V 400W 2Pin SMA T/R
Documentation

Datasheet

P4SMA39CA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

P4SMA39CA Specifications

Attribute	Attribute Value

Part Number	P4SMA39CA
Manufacturer	Littelfuse
ChipWorker Part#	CW7761971
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Voltage Rating (DC)	39.0 V
Power Rating	400 W
Breakdown Voltage	37.1 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	400 W
Clamping Voltage	53.9 V
Test Current	1 mA
Max Breakdown Voltage	41 V
Peak Pulse Power	400 W
Min Breakdown Voltage	37.1 V
Reverse Breakdown Voltage	37.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Size-Length	5.28 mm
Size-Width	2.79 mm
Size-Height	2.29 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16

Product Description

The P4SMA series surface-mount Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits. It is used for surface mounted applications in order to optimize board space.
Built-in strain relief
Glass passivated junction
Low inductance
Excellent clamping capability
0.01% Repetition rate (duty cycle)
<1.0ps from 0V to V(BR) Minimum fast response time for unidirectional types
<1µA above 10V IR
Available in unidirectional and bidirectional
-65 to 150°C Operating temperature range
