P6SMB200A - Littelfuse

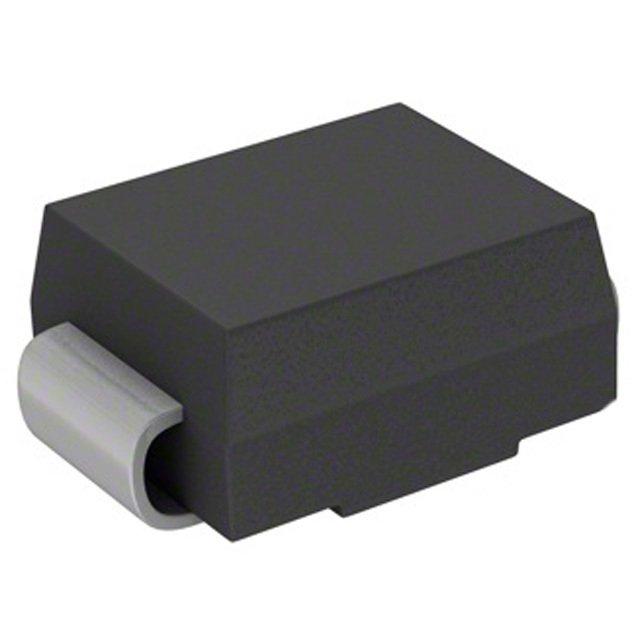

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

P6SMB200A
Manufacturer

Littelfuse
ChipWorker Part#

CW8023839
Category

TVS Diode
Package

DO-214AA
Description

Diode TVS Single Uni-Dir 171V 600W 2Pin SMB T/R
Documentation

Datasheet

P6SMB200A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

P6SMB200A Specifications

Attribute	Attribute Value

Part Number	P6SMB200A
Manufacturer	Littelfuse
ChipWorker Part#	CW8023839
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Breakdown Voltage	200 V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	2 Position
Power Dissipation	600 W
Clamping Voltage	274 V
Test Current	1 mA
Max Breakdown Voltage	210 V
Peak Pulse Power	600 W
Min Breakdown Voltage	190 V
Reverse Breakdown Voltage	190 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99

Product Description

The P6SMB200A from Littelfuse is a 600W, unidirectional transient voltage suppressor in DO-214AA package. It features excellent clamping capability, low incremental surge resistance, low profile package, built-in strain relief and fast response time. The P6SMB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits.
Reverse standoff voltage VR is 171V
Breakdown voltage VBR is 190V minimum and 210V maximum at 1mA
Maximum reverse leakage is 1µA
Maximum clamping voltage VC is 274V
Maximum peak pulse current is 2.2A
Power dissipation on infinite heat sink at TL=50°C is 5W
Peak forward surge current IFSM is 100A
Maximum instantaneous forward voltage is 5V
Operating temperature range from -65°C to +175°C, IEC-61000-4-2 ESD 30KV (air), 30KV (contact)
ESD protection of data lines with IEC 61000-4-2 and EFT protection with IEC 61000-4-4 standard
