P6SMB27CA - Littelfuse

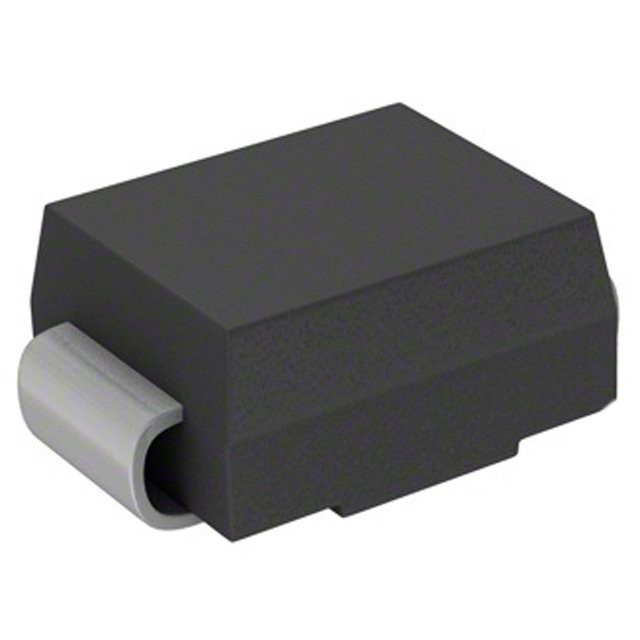

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

P6SMB27CA
Manufacturer

Littelfuse
ChipWorker Part#

CW4268296
Category

TVS Diode
Package

DO-214AA
Description

Diode TVS Single Bi-Dir 23.1V 600W 2Pin SMB T/R
Documentation

Datasheet

P6SMB27CA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

P6SMB27CA Specifications

Attribute	Attribute Value

Part Number	P6SMB27CA
Manufacturer	Littelfuse
ChipWorker Part#	CW4268296
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Breakdown Voltage	27 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	600 W
Clamping Voltage	37.5 V
Test Current	1 mA
Max Breakdown Voltage	28.4 V
Peak Pulse Power	600 W
Min Breakdown Voltage	25.7 V
Reverse Breakdown Voltage	25.7 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Description
The P6SMB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
