P6SMB300CA - Littelfuse

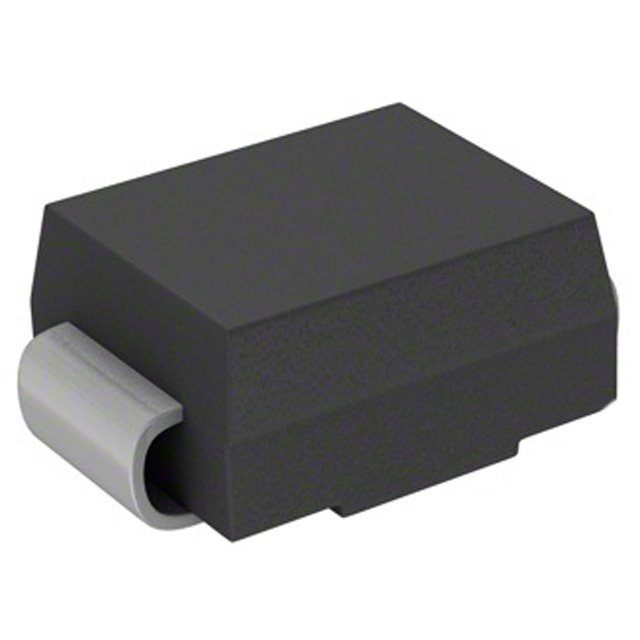

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

P6SMB300CA
Manufacturer

Littelfuse
ChipWorker Part#

CW22262400
Category

TVS Diode
Package

DO-214AA-2
Description

Diode TVS Single Bi-Dir 256V 600W 2Pin SMB T/R
Documentation

Datasheet

P6SMB300CA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

P6SMB300CA Specifications

Attribute	Attribute Value

Part Number	P6SMB300CA
Manufacturer	Littelfuse
ChipWorker Part#	CW22262400
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA-2
Operating Voltage	256 V
Breakdown Voltage	315 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	600 W
Clamping Voltage	414 V
Test Current	1 mA
Max Breakdown Voltage	315 V
Peak Pulse Power	600 W
Min Breakdown Voltage	285 V
Reverse Breakdown Voltage	285 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Description
The P6SMB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.
