PA0367ANLT - Pulse Electronics

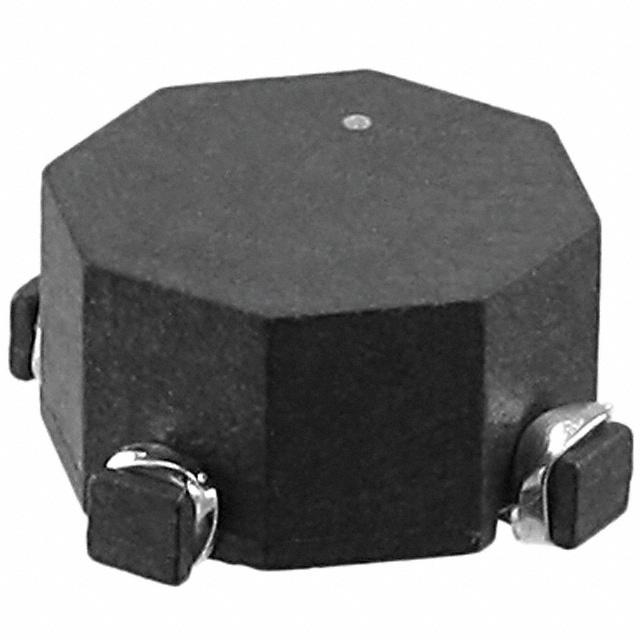

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PA0367ANLT
Manufacturer

Pulse Electronics
ChipWorker Part#

CW24122033
Category

Transformer
Description

Switching Transformer 1:12 0.18Ω Prim. DCR 0.018Ω Sec. DCR 4Term. SMD
Documentation

Datasheet

PA0367ANLT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PA0367ANLT Specifications

Attribute	Attribute Value

Part Number	PA0367ANLT
Manufacturer	Pulse Electronics
ChipWorker Part#	CW24122033
Category	Transformer
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Power Rating	1.0000 W
Inductance	18 µH
Isolation Voltage	500 Vrms
Operating Temperature (Max)	130 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Length	11.68 mm
Size-Width	11.68 mm
Size-Height	5.2 mm
Operating Temperature	-40℃ ~ 130℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

PA0367ANLT is manufactured by Pulse Electronics and is categorized in the Switching Converter, SMPS Transformers category. PA0367ANLT is described as TRANSFORMER 18UH 1:12 SMD. Perfect Parts is a supplier of Transformers and other Miscellaneous.
