PCA9535PW - TI

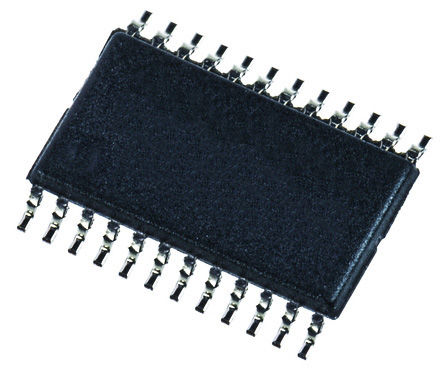

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PCA9535PW
Manufacturer

TI
ChipWorker Part#

CW8770778
Category

Interface IC, Interface Controller
Package

TSSOP-24
Description

TEXAS INSTRUMENTS PCA9535PW I/O Expander, 16Bit, 400kHz, I2C, SMBus, 2.3V, 5.5V, TSSOP
Documentation

Datasheet

PCA9535PW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PCA9535PW Specifications

Attribute	Attribute Value

Part Number	PCA9535PW
Manufacturer	TI
ChipWorker Part#	CW8770778
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	TSSOP-24
Supply Voltage (DC)	2.30V ~ 5.50V
Number of Outputs	2 Output
Output Current	25 mA
Number of Positions	24 Position
Clock Speed	400 kHz
Voltage Nodes	2.70 V, 3.30 V, 3.60 V, 5.00 V
Number of Inputs and Outputs	16 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.3 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

I/O Expander 16 I²C, SMBus 400kHz 24-TSSOP
