PCF8574AN - TI

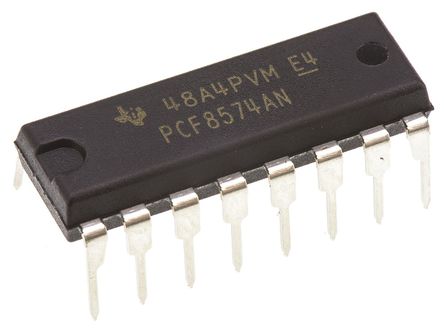

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PCF8574AN
Manufacturer

TI
ChipWorker Part#

CW9380033
Category

Interface IC, Interface Controller
Package

PDIP-16
Description

I/O Expander, 8Bit, 100kHz, I2C, 2.5V, 6V, DIP
Documentation

Datasheet

PCF8574AN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PCF8574AN Specifications

Attribute	Attribute Value

Part Number	PCF8574AN
Manufacturer	TI
ChipWorker Part#	CW9380033
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Supply Voltage (DC)	2.50V ~ 6.00V
Number of Outputs	8 Output
Number of Positions	16 Position
Clock Speed	100 kHz
Number of Bits	8 Bit
Voltage Nodes	5.00 V, 3.30 V
Number of Inputs and Outputs	8 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.5V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2.5 V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
ECCN Code	EAR99

Product Description

This 8 bit input/output expander for the two line bidirectional bus (I2C) is designed for 2.5V to 6V VCC operation. The PCF8574AN provides general purpose remote I/O expansion for most microcontroller families via the I2C interface [serial clock (SCL), serial data (SDA)]. The device features an 8 bit quasi-bidirectional I/O port (P0-P7), including latched outputs with high current drive capability for directly driving LEDs. Each quasi-bidirectional I/O can be used as an input or output without the use of a data direction control signal. At power on, the I/Os are high. In this mode, only a current source to VCC is active. An additional strong pull-up to VCC allows fast rising edges into heavily loaded outputs. This device turns on when an output is written high and is switched off by the negative edge of SCL. The I/Os should be high before being used as inputs.
Low standby current consumption of 10mA max.
Compatible with most microcontrollers
Latched outputs with high current drive
I2C to parallel port expander capability for directly driving LEDs
Open-drain interrupt output
Latch-Up performance exceeds 100mA Per JESD 78, Class II
