PESD3V3C1BSFYL - Nexperia

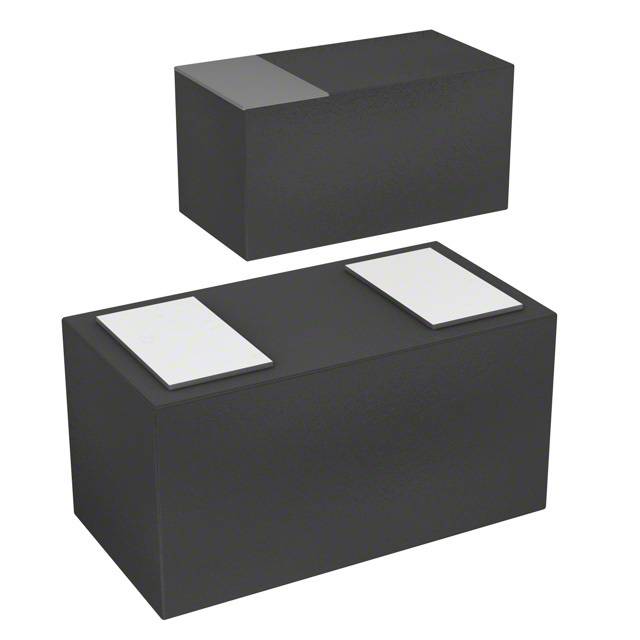

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PESD3V3C1BSFYL
Manufacturer

Nexperia
ChipWorker Part#

CW45738710
Category

Diode
Package

SOD-962
Description

TVS DIODE 3.3VWM 5VC SOD962
Documentation

Datasheet

PESD3V3C1BSFYL Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PESD3V3C1BSFYL Specifications

Attribute	Attribute Value

Part Number	PESD3V3C1BSFYL
Manufacturer	Nexperia
ChipWorker Part#	CW45738710
Category	Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-962
Operating Voltage	3.3 V
Capacitance	0.25 pF
Number of Positions	2 Position
Clamping Voltage	6.5 V
Test Current	1 mA
Min Breakdown Voltage	6 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	150 ℃
	expand all
Size-Height	0.29 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status
ECCN Code	EAR99

Product Description

5.5V Clamp 9A (8/20µs) Ipp Tvs Diode Surface Mount DSN0603-2
