PLED6S ,Thyristor - Littelfuse

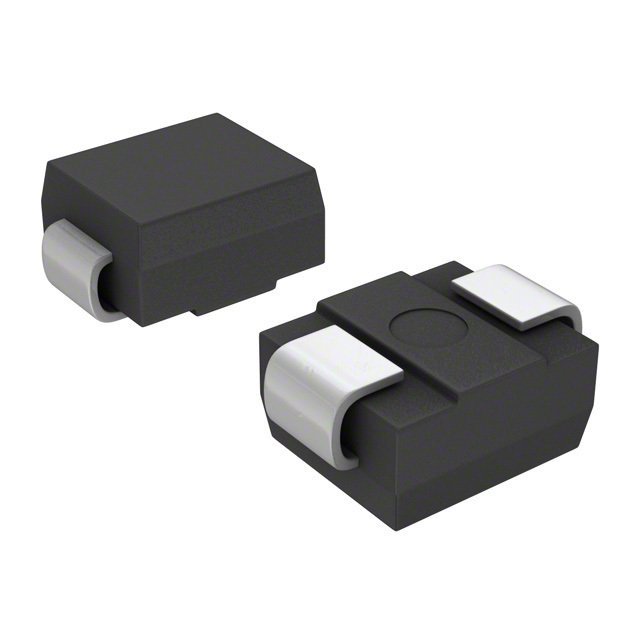

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

119 points

Part No

PLED6S
Manufacturer

Littelfuse
ChipWorker Part#

CW21761969
Category

Thyristor
Package

DO-214AA
Description

LITTELFUSE PLED6S TVS Thyristor, Surge Protector, PLED Series, 1.2V, 1A, DO-214AA, 2Pins, -40℃
Documentation

Datasheet
Ships from

Moscow
Наличие

154069 pcs In Stock
Estimated Price

$ 0.06

Buy PLED6S

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

PLED6S Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

PLED6S Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	PLED6S
Manufacturer	Littelfuse
ChipWorker Part#	CW21761969
Category	Thyristor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Operating Voltage	6 V
Breakdown Voltage	6 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Holding Current	5 mA
Clamping Voltage	16 V
Max Breakdown Voltage	16 V
Holding Current (Max)	5 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Size-Height	2.25 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The PLED6S is an Open LED Protector provides a switching electronic shunt path when a LED in a LED string fails as an open circuit. This ensures that the remaining string of LEDs will continue to function if a single LED does not. The device was designed to enable higher reliability in outdoor. Compatible with one, two and three watt LEDs that have a nominal 3V forward characteristic.
Fast switching
Automatically resets after power cycle
Compatible with industrial lighting environments
Compatible with PWM frequencies up to 30kHz

expand all
