PTH08T220WAD - TI

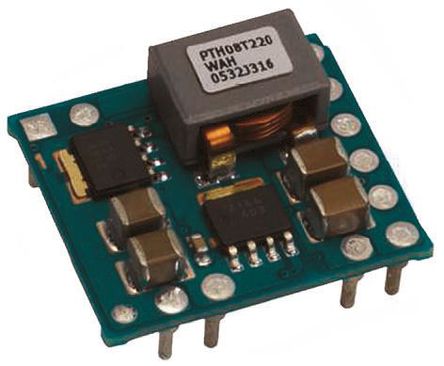

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PTH08T220WAD
Manufacturer

TI
ChipWorker Part#

CW6570187
Category

DC to DC Converter, DC/DC Converter
Package

DIP-11
Description

TEXAS INSTRUMENTS PTH08T220WAD Non Isolated POL DC-DC Converter, Adjustable, POLA, DIP, 88W, 690mV, 5.5V, 16A
Documentation

Datasheet

PTH08T220WAD Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PTH08T220WAD Specifications

Attribute	Attribute Value

Part Number	PTH08T220WAD
Manufacturer	TI
ChipWorker Part#	CW6570187
Category	DC to DC Converter, DC/DC Converter
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	11 Pin
Case/Package	DIP-11
Supply Voltage (DC)	5.00 V
Power Rating	88 W
Number of Outputs	1 Output
Input Voltage (DC)	4.50V ~ 14.0V
Output Voltage	0.69V ~ 5.5V
Output Current	16 A
Number of Regulated Outputs	1 Output
Topology	Buck
Input Voltage (Max)	14 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	14 V
Input Voltage (DC Min)	4.5 v
Output Voltage (Max)	5.5 V
Output Voltage (Min)	690 mV
Output Current (Max)	16 A
Input Power (Max)	88 W
Input Power (Max)	88 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5V ~ 14V
	expand all
Size-Length	22.1 mm
Size-Width	18.93 mm
Size-Height	8.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR

Product Description

The PTH08T220WAD is a 1-output 88W through hole-mount non-isolated adjust Power Module with TurboTrans™. This module represents the 2nd generation of the popular PTH series power modules and include a reduced footprint and improved features. Operating from an input voltage range of 4.5 to 14V, the PTH08T220W requires a single resistor to set the output voltage to any value over the range, 0.69 to 5.5V. The wide input voltage range makes the PTH08T220W particularly suitable for advanced computing and server applications that utilize a loosely regulated 8 to 12V intermediate distribution bus. Additionally, the wide input voltage range increases design flexibility by supporting operation with tightly regulated 5, 8 or 12V intermediate bus architectures. The module incorporates a comprehensive list of features. Output over-current and over-temperature shutdown protects against most load faults. A differential remote sense ensures tight load regulation.
Output overcurrent protection (non-latching, auto-reset)
Pre-bias start-up
ON/OFF inhibit
Differential output voltage remote sense
Adjustable under-voltage lockout
POLA™ compatible
Designed to meet ultra-fast transient
Requirements up to 300A/µs
SmartSync technology
Auto-Track sequencing
High-performance, wide-output
±1.5% Total output voltage variation
Efficiencies up to 96%
