PTH08T221WAD - TI

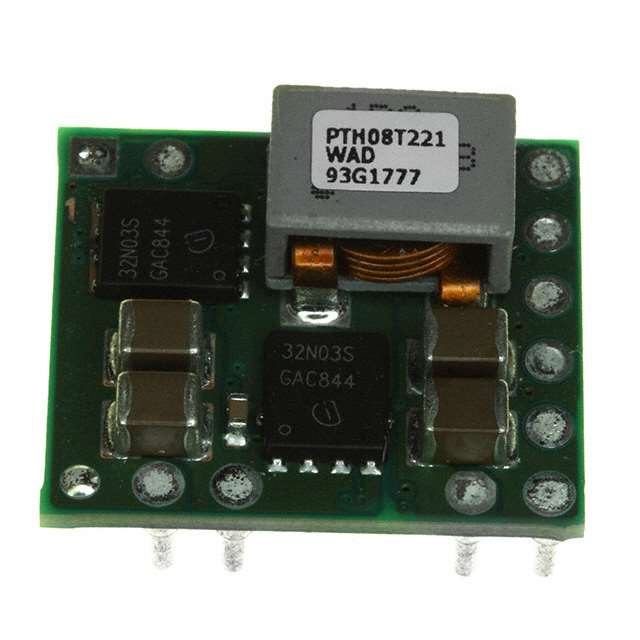

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PTH08T221WAD
Manufacturer

TI
ChipWorker Part#

CW34824404
Category

DC to DC Converter, DC/DC Converter
Package

DIP-11
Description

TEXAS INSTRUMENTS PTH08T221WAD Non Isolated POL DC-DC Converter, Adjustable, POLA, DIP, 88W, 690mV, 5.5V, 16A
Documentation

Datasheet

PTH08T221WAD Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PTH08T221WAD Specifications

Attribute	Attribute Value

Part Number	PTH08T221WAD
Manufacturer	TI
ChipWorker Part#	CW34824404
Category	DC to DC Converter, DC/DC Converter
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	11 Pin
Case/Package	DIP-11
Frequency	300 kHz
Supply Voltage (DC)	5.00 V
Power Rating	88 W
Number of Outputs	1 Output
Input Voltage (DC)	4.50V ~ 14.0V
Output Voltage	0.69V ~ 5.5V
Output Current	16 A
Flammability Rating	UL 94 V-0
Number of Regulated Outputs	1 Output
Topology	Buck
Input Voltage (Max)	14 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	14 V
Input Voltage (DC Min)	4.5 v
Output Voltage (Max)	5.5 V
Output Voltage (Min)	690 mV
Output Current (Max)	16 A
Input Power (Max)	88 W
Input Power (Max)	88 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	1.5 %
Supply Voltage	5 V
Supply Voltage (Max)	14 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 14V
	expand all
Size-Length	18.9 mm
Size-Width	18.93 mm
Size-Height	8.5 mm
Weight	5.00 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The PTH08T220/221W is a high-performance 16-A rated, non-isolated power module. These modules represent the 2nd generation of the popular PTH series power modules and include a reduced footprint and improved features. The PTH08T221W is optimized to be used with all ceramic capacitors.
Operating from an input voltage range of 4.5 V to 14 V, the PTH08T220/221W requires a single resistor to set the output voltage to any value over the range, 0.69 V to 5.5 V. The wide input voltage range makes the PTH08T220/221W particularly suitable for advanced computing and server applications that utilize a loosely regulated 8-V to 12-V intermediate distribution bus. Additionally, the wide input voltage range increases design flexibility by supporting operation with tightly regulated 5-V, 8-V, or 12-V intermediate bus architectures.
The module incorporates a comprehensive list of features. Output over-current and over-temperature shutdown protects against most load faults. A differential remote sense ensures tight load regulation. An adjustable under-voltage lockout allows the turn-on voltage threshold to be customized. Auto-Track sequencing is a popular feature that greatly simplifies the simultaneous power-up and power-down of multiple modules in a power system.
The PTH08T220/221W includes new patent pending technologies, _TurboTrans™_ and _SmartSync_. The TurboTrans feature optimizes the transient response of the regulator while simultaneously reducing the quantity of external output capacitors required to meet a target voltage deviation specification. Additionally, for a target output capacitor bank, TurboTrans can be used to significantly improve the regulators transient response by reducing the peak voltage deviation. SmartSync allows for switching frequency synchronization of multiple modules, thus simplifying EMI noise suppression tasks and reducing input capacitor RMS current requirements. The module uses double-sided surface mount construction to provide a low profile and compact footprint. Package options include both through-hole and surface mount configurations that are lead (Pb) - free and RoHS compatible.
