PVT422SPBF - Infineon

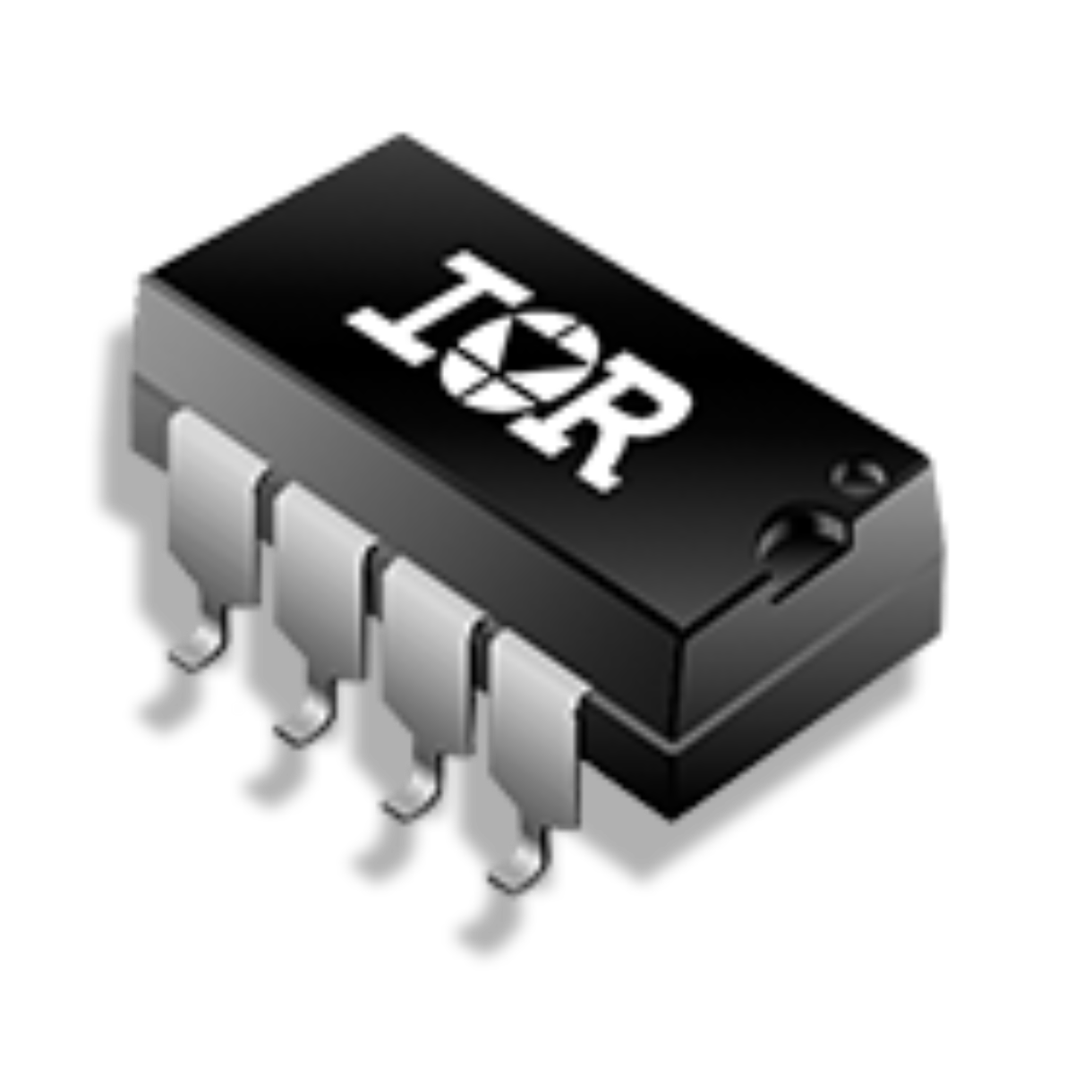

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

PVT422SPBF
Manufacturer

Infineon
ChipWorker Part#

CW11864417
Category

Solid State Relay
Package

PDIP-8
Description

Relay SSR 25mA DC-IN 0.12A 400V AC-DC-OUT 8Pin PDIP SMT Tube
Documentation

Datasheet

PVT422SPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

PVT422SPBF Specifications

Attribute	Attribute Value

Part Number	PVT422SPBF
Manufacturer	Infineon
ChipWorker Part#	CW11864417
Category	Solid State Relay
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PDIP-8
Output Voltage	0V ~ 400V
Output Current	0.12 A
Contacts Type	DPST-NO
Load Current	120 mA
Input Current	25 mA
Isolation Voltage	4 kV
Forward Current	25 mA
Output Voltage (Max)	400 V
Input Current (Min)	25 mA
Load Current (Max)	0.12 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	1.2 VDC
	expand all
Size-Length	9.39 mm
Size-Height	3.42 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The PVT422SPBF is a HEXFET® surface-mount power MOSFET Photovoltaic Relay with bounce-free operation. This photovoltaic relay is a dual-pole, normally open solid-state relay that can replace electromechanical relays in many applications. It utilizes international rectifiers HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode (LED) which is optically isolated from the photovoltaic generator.
Linear AC/DC operation
Solid-state reliability
4000Vrms I/O isolation
