QSE773 - Fairchild

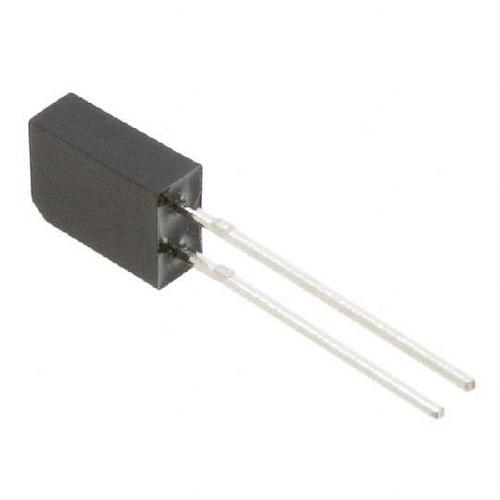

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

QSE773
Manufacturer

Fairchild
ChipWorker Part#

CW83584504
Category

Photodiode
Package

Side Looker
Description

QSE773 Series 940nm 150mW Through Hole Sidelooker Pin Photodiode
Documentation

Datasheet

QSE773 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

QSE773 Specifications

Attribute	Attribute Value

Part Number	QSE773
Manufacturer	Fairchild
ChipWorker Part#	CW83584504
Category	Photodiode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Side Looker
Wavelength	940 nm
Viewing Angle	120°
Peak Wavelength	940 nm
Power Dissipation	150 mW
Rise Time	50 ns
Output Power	150 mW
Reverse Breakdown Voltage	32 V
Fall Time	50 ns
Fall Time (Max)	50 ns
Fall Time (Max)	50 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	150 mW
	expand all
Size-Length	5.46 mm
Size-Width	2.95 mm
Size-Height	7.9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
