RB521S30 - ON Semiconductor

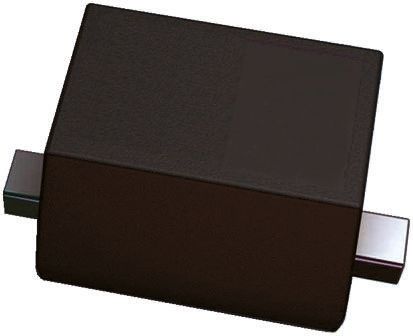

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RB521S30
Manufacturer

ON Semiconductor
ChipWorker Part#

CW3882389
Category

Schottky Diode
Package

SOD-523
Description

Small Signal Diode, Single, 30V, 200mA, 500mV, 125 C
Documentation

Datasheet

RB521S30 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RB521S30 Specifications

Attribute	Attribute Value

Part Number	RB521S30
Manufacturer	ON Semiconductor
ChipWorker Part#	CW3882389
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-523
Number of Positions	2 Position
Forward Voltage	0.5 V
Power Dissipation	200 mW
Thermal Resistance	500℃/W (RθJA)
Forward Current	200 mA
Maximum Forward Voltage (Max)	500 mV
Forward Current (Max)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
	expand all
Size-Length	1.3 mm
Size-Width	0.9 mm
Size-Height	0.7 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The RB521S30 is a Schottky Barrier Diode with matte tin-plated lead terminals and green mould compound case. This product is general usage and suitable for many different applications.
Low forward voltage drop
Flat lead, surface mount device under 0.70mm height
Extremely small outline plastic package SOD523F
Moisture level sensitivity 1
Pb-free version
