RE034012 - TE Connectivity

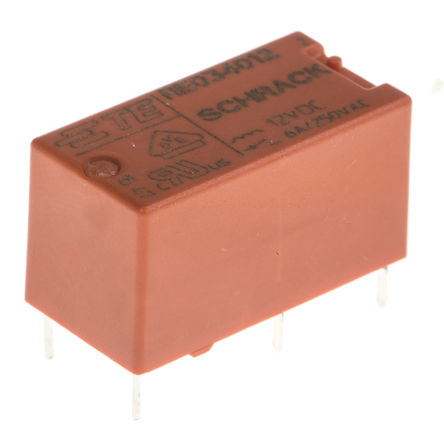

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RE034012
Manufacturer

TE Connectivity
ChipWorker Part#

CW58266844
Category

Power Relay
Package

-
Description

SPST-NO PCB Mount Non-Latching Relay Through Hole, 12V dc
Documentation

Datasheet

RE034012 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RE034012 Specifications

Attribute	Attribute Value

Part Number	RE034012
Manufacturer	TE Connectivity
ChipWorker Part#	CW58266844
Category	Power Relay
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	-
Voltage Rating (AC)	400 V
Current Rating	6 A
Contacts Type	SPST-NO
Contact Current Rating	6 A
Coil Voltage	12 VDC
Coil Current	16.67 mA
Coil Power (DC)	200 mW
Coil Resistance	720 Ω
Coil Voltage (DC)	12 V
Coil Power	200 mW
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	12 VDC
	expand all
Size-Length	20 mm
Size-Height	10.6 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The RE series General Purpose PCB Relay with low power. It offers 1-pole 6A and 1-form-A (NO) contacts.
Wash tight
Sensitive coil 200mW
4kV Coil-contact
Optimized height 10.6mm
PCB area 200mm²
