RE17RLMU - Schneider Electric

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RE17RLMU
Manufacturer

Schneider Electric
ChipWorker Part#

CW15389204
Category

Time Delay Relay, Timing Relay
Description

Timer; 0,1s÷100H; SPDT; 250VAC/8A; 24÷240VAC; 24VDC; DIN; -20÷60℃
Documentation

Datasheet

RE17RLMU Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RE17RLMU Specifications

Attribute	Attribute Value

Part Number	RE17RLMU
Manufacturer	Schneider Electric
ChipWorker Part#	CW15389204
Category	Time Delay Relay, Timing Relay
Documentation	Datasheet
Mounting Style	DIN Rail
Number of Contacts	2 Contact
Contacts Type	SPDT
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-20 ℃
Input Voltage	240 VAC
	expand all
Size-Length	90 mm
Size-Width	17.5 mm
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16

Product Description

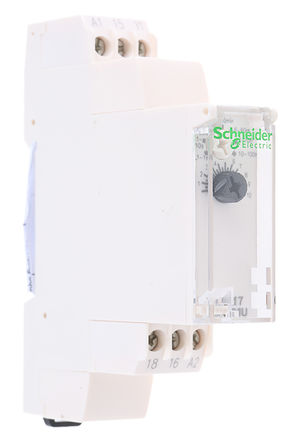

The RE17RLMU from Schneider is a Zelio modular relays with relay output. It is a dual function, multirange and multivoltage relay with DIN rail mounting.
Asymmetrical flasher relay
SPDT configuration
Timing ranges from 1sec to 100hours
Supply voltage range from 24VAC to 240VAC/ 24VDC
Rated current is 8A
7 selectable ranges
Screw terminals
State indication by 1 LED
Option of supplying a load in parallel
3-wire sensor control option
