REF5040AIDGKT - TI

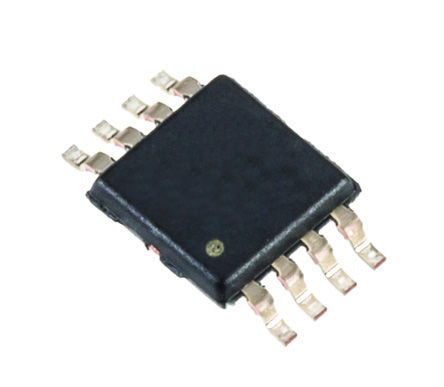

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

REF5040AIDGKT
Manufacturer

TI
ChipWorker Part#

CW4223600
Category

Voltage Reference
Package

VSSOP-8
Description

Series Voltage Reference Low Noise, Very Low Drift, Precision VOLTAGE REFERENCE V-Ref Precision 4.096V 10mA 8Pin VSSOP T/R
Documentation

Datasheet

REF5040AIDGKT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

REF5040AIDGKT Specifications

Attribute	Attribute Value

Part Number	REF5040AIDGKT
Manufacturer	TI
ChipWorker Part#	CW4223600
Category	Voltage Reference
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Capacitance Tolerance	±0.1 %
Output Voltage	4.096 V
Output Current	10 mA
Supply Current	1.2 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Quiescent Current	800 µA
Input Voltage (Max)	18 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	4.096 V
Output Voltage (Min)	4.096 V
Output Current (Max)	30 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	0.05 %
Voltage Rating	4.096 V
Input Voltage	4.296V ~ 18V
	expand all
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Temperature Coefficient	±8 ppm/℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

DESCRIPTION
The REF50xx is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing, and are very robust with regard to line and load changes. Excellent temperature drift (3ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques. These features, combined with very-low noise make the REF50xx family ideal for use in high-precision data acquisition systems.
