REF5050AID - TI

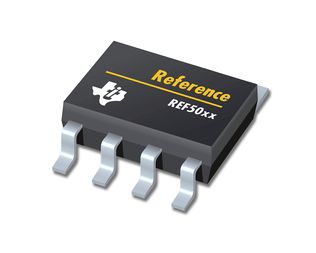

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

REF5050AID
Manufacturer

TI
ChipWorker Part#

CW2947569
Category

Voltage Reference
Package

SOIC-8
Description

Series Voltage Reference Low Noise, Very Low Drift, Precision VOLTAGE REFERENCE V-Ref Precision 5V 10mA 8Pin SOIC Tube
Documentation

Datasheet

REF5050AID Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

REF5050AID Specifications

Attribute	Attribute Value

Part Number	REF5050AID
Manufacturer	TI
ChipWorker Part#	CW2947569
Category	Voltage Reference
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Capacitance Tolerance	±0.1 %
Input Voltage (DC)	5.20V ~ 18.0V
Output Voltage	5 V
Output Current	10 mA
Supply Current	1.2 mA
Number of Channels	1 Channel
Quiescent Current	800 µA
Input Voltage (Max)	18 V
Output Voltage (Max)	5 V
Output Voltage (Min)	5 V
Output Current (Max)	10 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	0.05 %
Input Voltage	5.2V ~ 18V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Temperature Coefficient	±8 ppm/℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The REF50xx is a family of low-noise, low-drift, very high precision voltage references. These references are capable of both sinking and sourcing current, and have excellent line and load regulation.
Excellent temperature drift (3 ppm/°C) and high accuracy (0.05%) are achieved using proprietary design techniques. These features, combined with very low noise, make the REF50xx family ideal for use in high-precision data acquisition systems.
Each reference voltage is available in both high grade (REF50xxIDGK and REF50xxID) and standard grade (REF50xxAIDGK and REF50xxAID). The reference voltages are offered in 8-pin VSSOP and SOIC packages, and are specified from –40°C to 125°C.
