RGF1D - ON Semiconductor

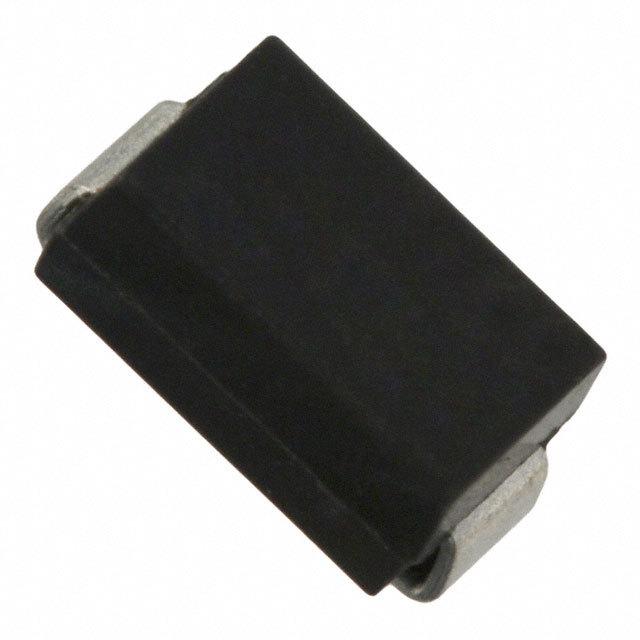

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RGF1D
Manufacturer

ON Semiconductor
ChipWorker Part#

CW80265597
Package

DO-214AC
Description

Rectifier Diode, Single, 200V, 1A, 1.3V, 30A, 175 C
Documentation

Datasheet

RGF1D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RGF1D Specifications

Attribute	Attribute Value

Part Number	RGF1D
Manufacturer	ON Semiconductor
ChipWorker Part#	CW80265597
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC
Number of Positions	2 Position
Forward Voltage	1.3V @1A
Thermal Resistance	28℃/W (RθJL)
Reverse recovery time	150 ns
Forward Current	1 A
Max Forward Surge Current (Ifsm)	30 A
Maximum Forward Voltage (Max)	1.3 V
Forward Current (Max)	1 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1760 mW
	expand all
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status

Product Description

Diode Standard 200V 1A Surface Mount DO-214AC (SMA)
