RHRG3060 - Fairchild

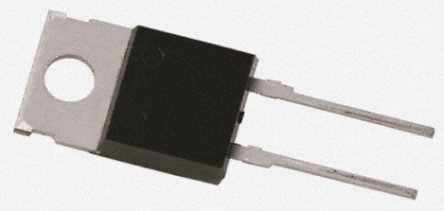

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RHRG3060
Manufacturer

Fairchild
ChipWorker Part#

CW43786017
Category

TVS Diode
Package

TO-247-2
Description

FAIRCHILD SEMICONDUCTOR RHRG3060 Fast / Ultrafast Power Diode, Single, 600V, 30A, 2.1V, 65ns, 300A
Documentation

Datasheet

RHRG3060 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RHRG3060 Specifications

Attribute	Attribute Value

Part Number	RHRG3060
Manufacturer	Fairchild
ChipWorker Part#	CW43786017
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-247-2
Voltage Rating (DC)	600 V
Current Rating	30.0 A
Capacitance	85.0 pF
Output Current	≤30.0 A
Forward Voltage	2.1V @30A
Polarity	Standard
Thermal Resistance	1.2℃/W (RθJC)
Reverse recovery time	45 ns
Forward Current	30 A
Max Forward Surge Current (Ifsm)	325 A
Maximum Forward Voltage (Max)	2.1 V
Forward Current (Max)	30 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	expand all
Size-Length	15.8 mm
Size-Width	4.82 mm
Size-Height	20.8 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The RHRG3060 is a hyper-fast Ultra-fast Diode with soft-recovery characteristics. It has the half recovery time and is silicon nitride passivated ion-implanted epitaxial planar construction. It is intended to be used as free-wheeling/clamping diodes and diodes in a variety of switching power supplies and other power switching applications. Their low stored charge and hyper-fast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.
