RTS3L012 - TE Connectivity

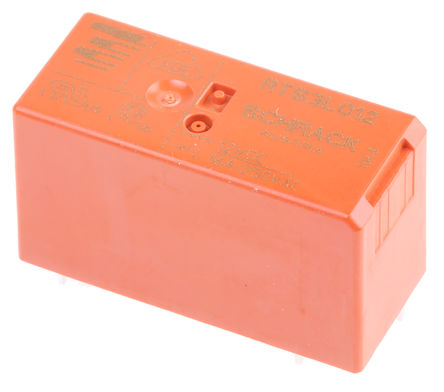

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RTS3L012
Manufacturer

TE Connectivity
ChipWorker Part#

CW53013265
Category

Power Relay
Package

DIP
Description

Power Relay 12VDC 16A SPST-NO (( 29mm 12.7mm 16mm)) Through Hole
Documentation

Datasheet

RTS3L012 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RTS3L012 Specifications

Attribute	Attribute Value

Part Number	RTS3L012
Manufacturer	TE Connectivity
ChipWorker Part#	CW53013265
Category	Power Relay
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	DIP
Current Rating	16 A
Contacts Type	SPST-NO
Coil Voltage	12 VDC
Coil Current	33.33 mA
Coil Power (DC)	400 mW
Coil Resistance	360 Ω
Coil Voltage (DC)	12 V
Switching Current (Max)	16 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	12 VDC
	expand all
Size-Length	29 mm
Size-Width	12.7 mm
Size-Height	16 mm
Contact Material	Silver Tin Oxide
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
HTS Code	8536490050
ECCN Code	EAR99

Product Description

The RTS3L012 is a Power PCB Relay, inrush power with DC coil. This RT1-series relay has 1-form-A (1NO) AgSnO2 contact with 16mm high. Standard monostable coil version without test lab. Typical applications such as lighting systems, movement sensors, filament and incandescent lamp loads, motors.
PCB terminal type
Reinforced insulation
Class F coil insulation
-40 to 85°C Ambient temperature range
